Panda Under Armor H2D

Product Overview

The BIQU Panda Under Armor H2D is a dedicated mobile base for the H2D 3D printer. It offers full-bottom protection against dust and impacts while the printer is in motion. The built-in caster wheels make it easy to reposition your printer, and they lock to provide a stable, vibration-resistant platform for high-quality prints.

Product Features

  • Full Protection: Offers complete protection for the bottom components of the printer, preventing damage from accidental bumps during movement.

  • Custom Fit: Custom fit for the H2D printer, providing a seamless fit that effectively blocks dust and debris.

  • Equipped with Liftable Castor Wheels: Enables smooth mobility and secure parking, adapting to diverse workspace requirements with ease.

Product Specifications

  • Product Name: BIQU Panda Under Armor H2D

  • Material: Powder Coated Steel

  • Compatible Model: H2D 3D Printer

Installation Guide

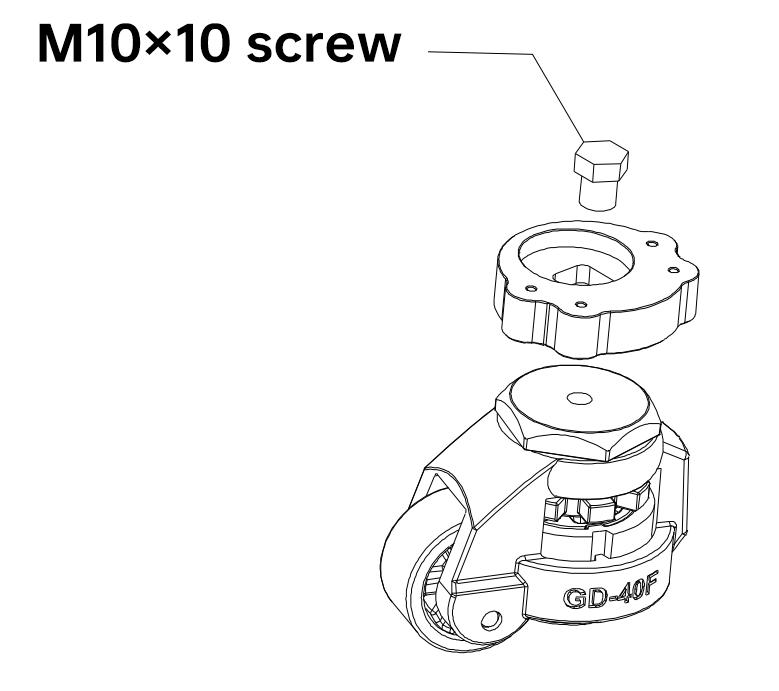

  • Step 1: Install the Wheel Assembly

    As shown in the image, secure the mounting bracket to the castor wheel using M10×10 screws.

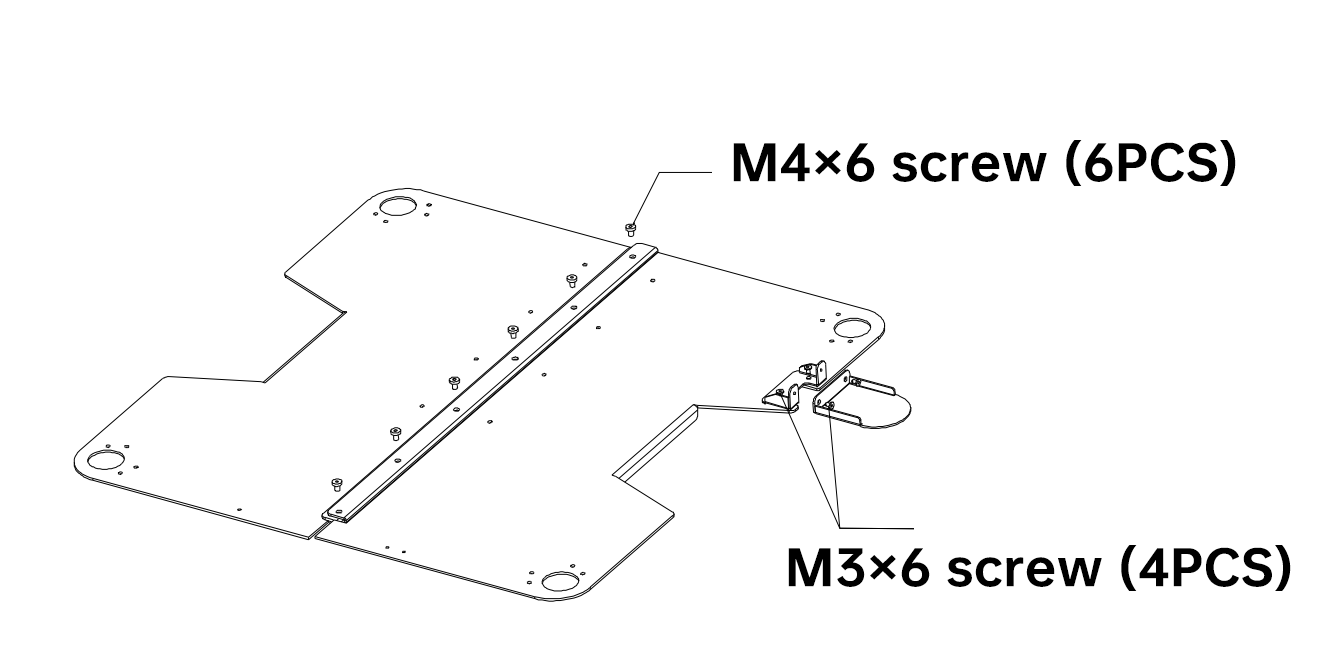

  • Step 2: Assemble the Main Panel

    ⚠️ Important: During normal use, the silkscreened side must face the floor.

    • With the silkscreened side facing up, join the two metal panels and secure them with 6 × M4×6 screws.

    • Attach the emergency stop switch bracket to the plate using 4 × M3×6 screws.

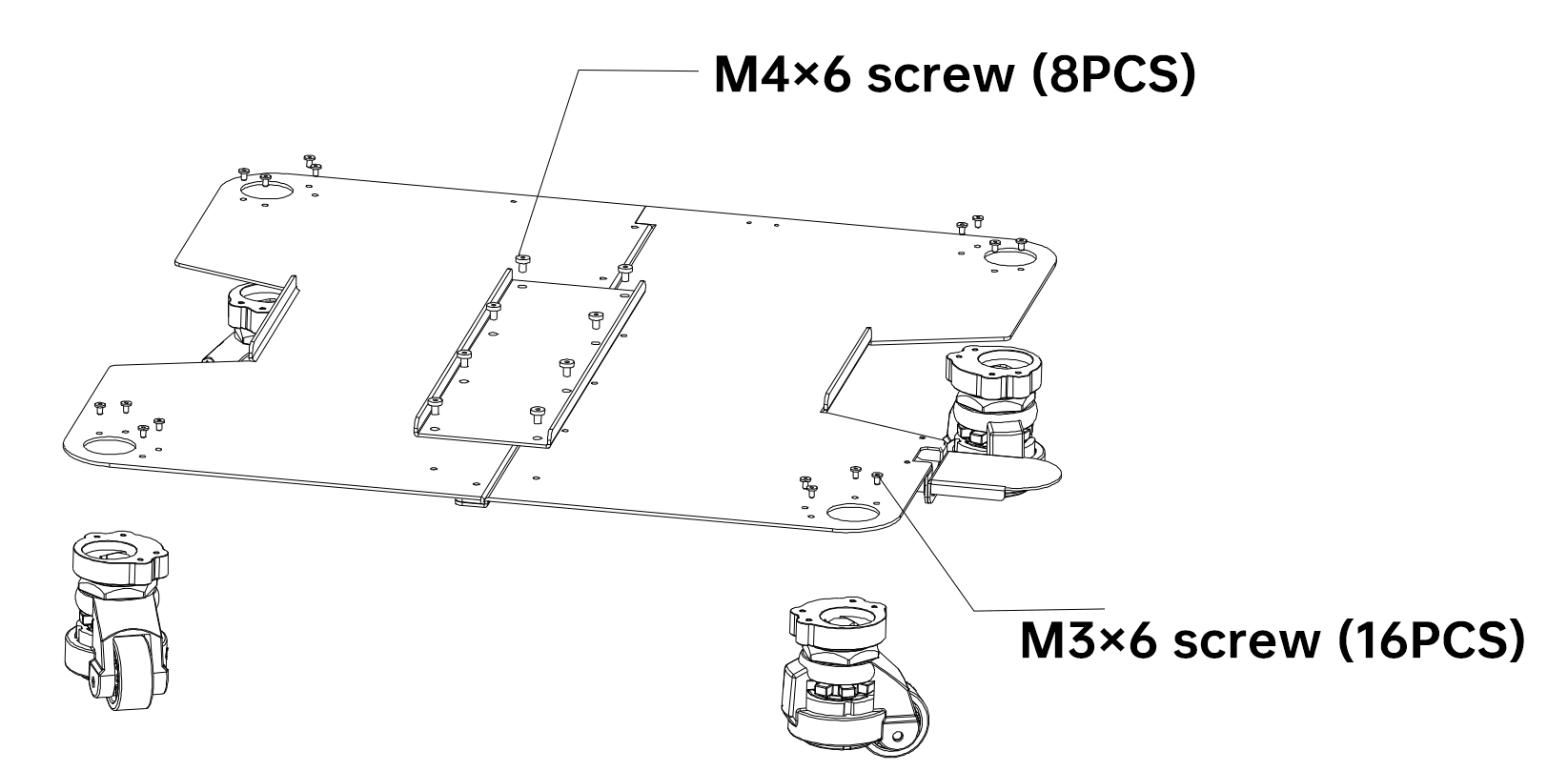

  • Step 3: Reinforce Connection Stability

    • Flip the assembly onto its non-silkscreened, load-bearing side. Secure the reinforcement plate across the two panels using 8 × M4×6 screws to enhance stability.

    • Complete the assembly by installing the wheels using 4 × M3×16 screws at each corner. Then, with the help of a partner, carefully align and position the printer onto the base.

How to Lower the Shock-Absorbing Foot Pads for Stable Placement

Lower the shock-absorbing foot pads on the castor wheels to prevent any movement during operation.

To Lock: Use the tool to pull the red adjustment wheel toward the triangle icon on the tool, lowering the foot pads and securing the printer to the floor.

To Unlock: Pull the wheel toward the circle icon to raise the foot pads, allowing smooth movement.
