Nebula¶
Github Repository： https://github.com/bigtreetech/Nebula
Product Link: https://biqu.equipment/products/biqu-nebula
Wiki: https://bttwiki.com/Nebula.html

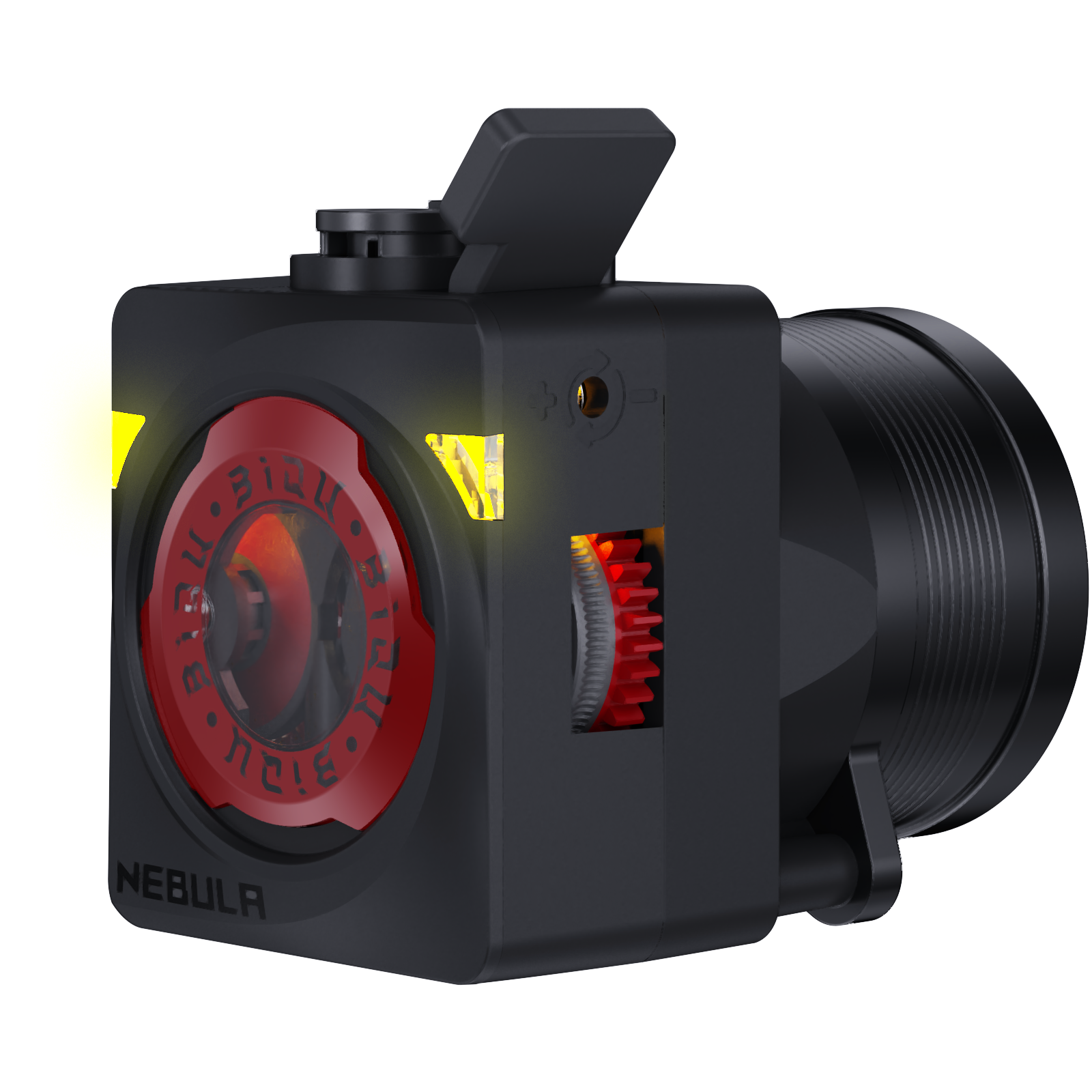

Introduction¶
Nebula, the smart extruder designed for optimal cost-effectiveness, features an RGB backlight to enhance your print head. It boasts powerful extrusion capabilities, a built-in filament sensor, and a customizable G-code button, enabling auto filament loading and one-button unloading.
Feature Highlights¶
RGB Lighting: Programmable for visual status monitoring.
Built-in Filament Sensor: Automatically triggers filament loading upon insertion.
Transparent Magnetic Cover: Enables efficient maintenance checks and repairs.
Customizable G-code Button: A programmable button for one-click filament unloading and other custom functions.
6kg+ Reliable Extrusion Force: Precision planetary gears deliver over 6kg of extrusion power, with a hardened steel drive gear ensuring consistent and flawless extrusion for perfect prints.
Specifications¶
| Extrusion Method | Dual Gear Extrusion |
|---|---|
| Weight | 143 g |
| Maximum Extrusion Force | 6 kg (varies with filament types) |
| Klipper Rotation Distance | 4.5 |
| Recommended Motor Current | 800 mA |
| Gear Ratio | 11.25 :1 |
| Drive Gear Circumference | 50.4 mm |
| Filament Diameter and Tolerance | 1.75 mm ± 0.05 mm |
| Voltage | 24V |
Dimensions¶

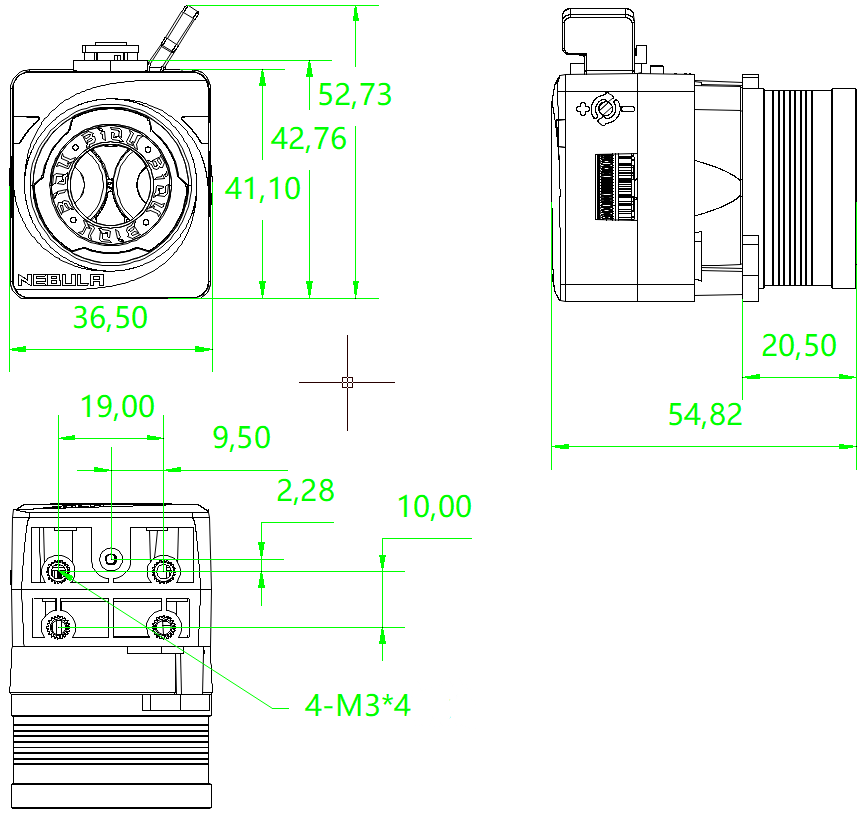

XYZ Dimensions: 52.73 x 36.5 x 54.82mm
Adjusting the Drive Gear Clamp Distance¶

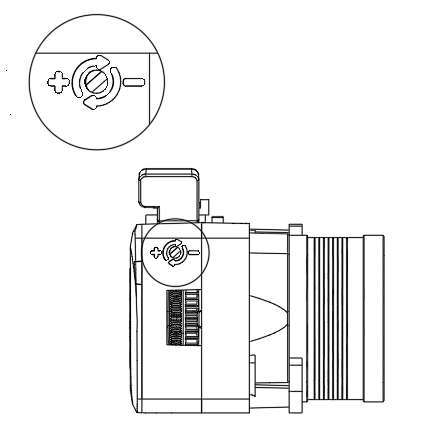

The drive gear clamp distance is adjustable to accommodate different types of filaments. Rotate the Limit Screw counterclockwise (toward the marked "(-)") to decrease distance or increase clamping pressure, which is ideal for hard filament, or clockwise (toward the marked "(+)") to increase distance to decrease pressure, ideal for softer materials.
Note: Avoid forcing the screw beyond its stopping point to prevent damage to the extruder.
Programmable Button¶

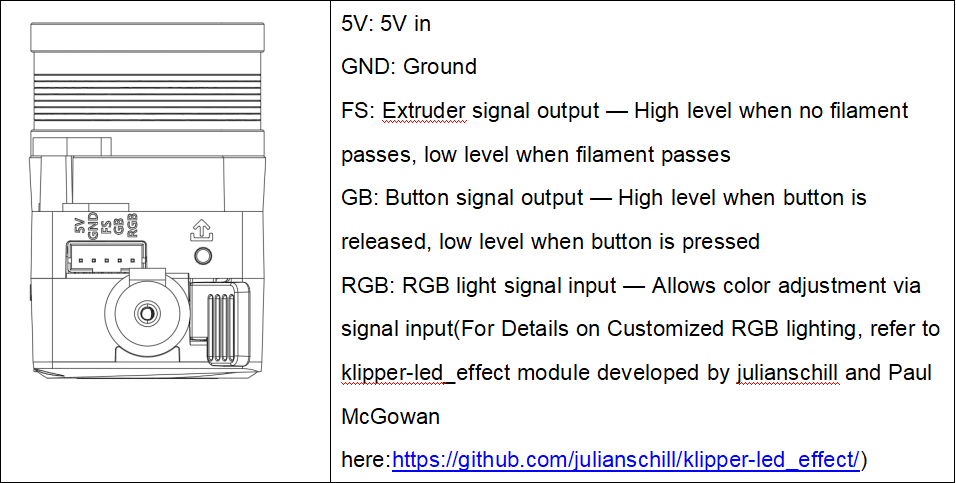

https://github.com/julianschill/klipper-led_effect/
Motor Specifications¶
| Number of Phase | 2 |
|---|---|
| Step Angle | 1.8° |
| Rated Voltage | DC 2.4V |
| Rated Current | DC 1.0A |
| Holding Torque | ≥110mN·m |
| Winding Resistant | 2.4±10% ohm (20℃) |
| Winding Inductance | 1.7±20% mH (1kHz) |
| Direction of Rotation | A-AB-B-CW |
| Rotor Inertia | 15 g·cm² |
| Motor Weight | 0.1 kg |
| Insulation Class | Class F |
Expanded¶
View

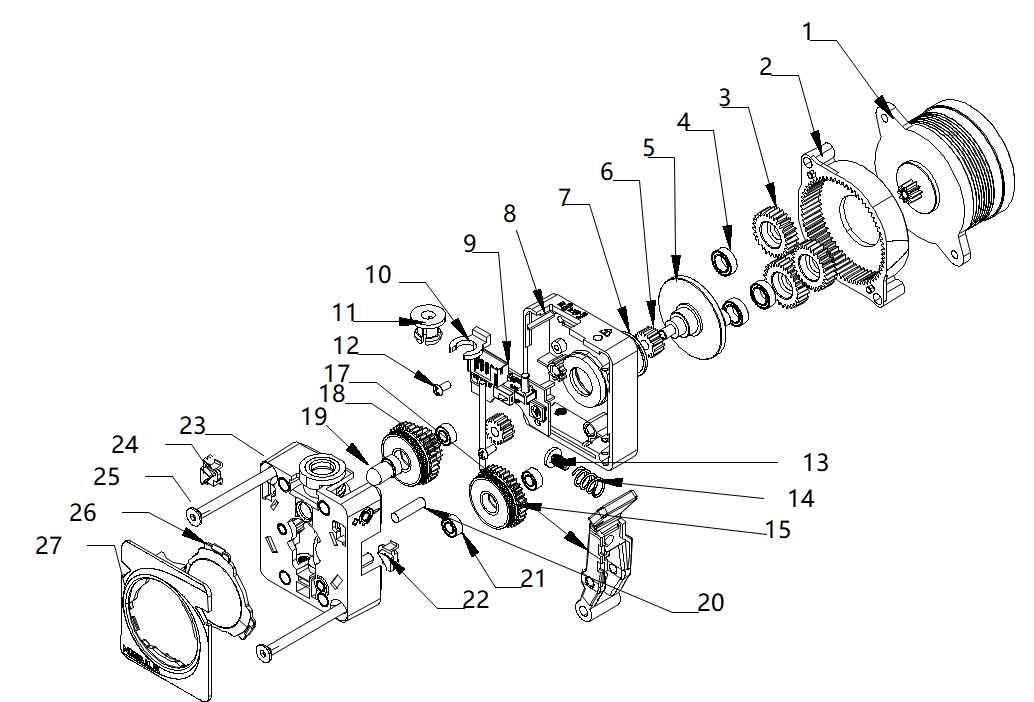

| 1. Motor | 15. Idler Gear |
|---|---|
| 2. Ring Gear Housing | 16. 3-5-6 PEEK Bearing |
| 3. Planetary Gear | 17. Idler Carrier Arm |
| 4. MR85ZZ Bearing | 18. Extrusion Gear |
| 5. Planetary Gear Carrier | 19. Filament Senser Insert |
| 6. 14-Tooth Pinion Gear | 20. Pin (Diameter 3x11) |
| 7. MF128ZZ Bearing | 21. 3-5-10 PEEK Bearing |
| 8. Back Case | 22. Right Lens |
| 9. Distribution Board | 23. Front Case |
| 10. Bowden Clip | 24. Left Lens |
| 11. Bowden Fitting | 25. M3x25 FHCS Screw |
| 12. M2x4 Screw | 26. Transparent Cover |
| 13. Limit Screw | 27. Magnetic Cover Frame |
| 14. Spring |
Product Purchase Link¶
https://biqu.equipment/products/biqu-nebula
If you have any issues with the product, please submit a support ticket.
https://biqu3d.com/pages/submit-a-ticket
