Panda Branch Plus

Revision Log

Version Date Update Notes
v1.00 Sept 10, 2025 Initial Release

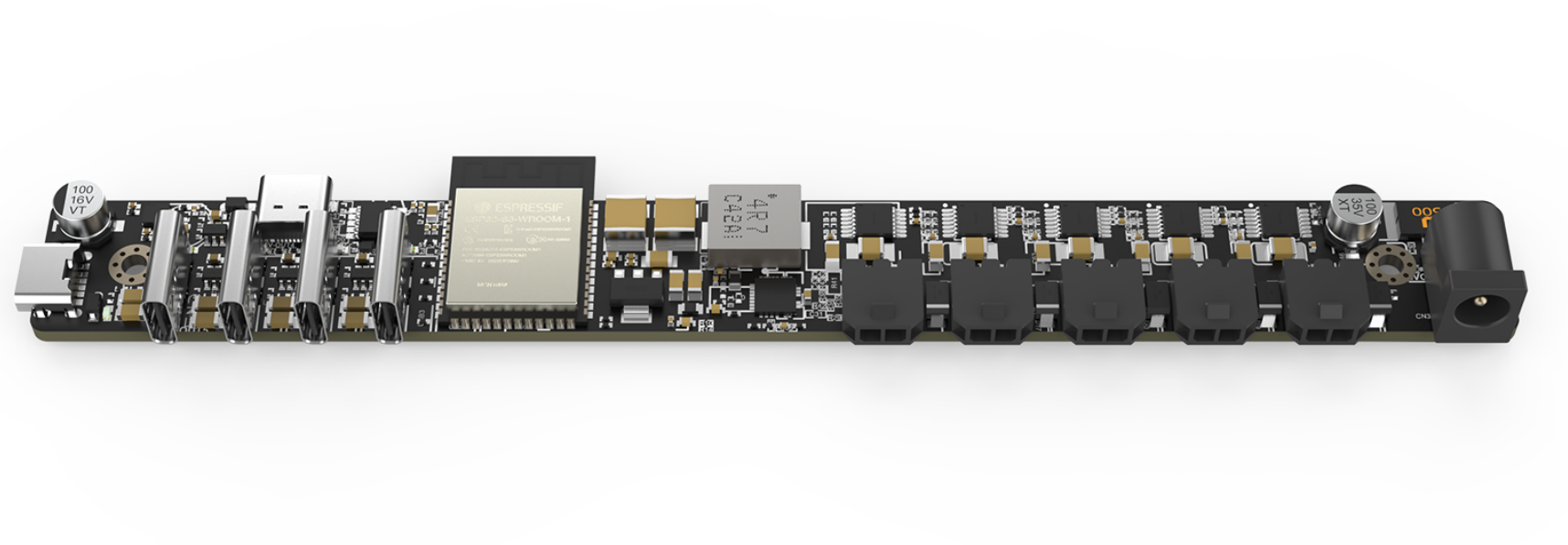

Product Overview

Panda Branch Plus delivers advanced modular power management for your 3D printing ecosystem. This all-in-one system includes a powerful 24V / 2.8A adapter and features 10 independent power channels (5 × MX3.0 ports and 5 × Type-C ports) for flexible device connections—each individually switchable via the WebUI. Powered by a built-in ESP32 processor and enhanced MQTT gateway technology, it overcomes traditional connectivity limitations.

A dedicated 5V / 5A Type-C output provides direct power for Panda Hub Plus, while the detachable housing design ensures quick and easy installation—simply snap the housing into place for a ready-to-use power solution. With integrated intelligent power distribution and network reliability, Panda Branch Plus guarantees stable, worry-free performance across all connected devices.

Product Features

  • Centralized power management hub with up to 10 independently controlled outputs

  • Built-in MQTT gateway supporting multiple sub-devices for reliable networking

  • High-power adapter included: 24V / 2.8A for stable and consistent output

  • 5 × Type-C outputs and 5 × MX3.0 outputs for versatile connections

  • Integrated ESP32-S3 module for smart Wi-Fi control

  • Built-in safety protection circuits, including ESD protection, over-current protection, and short-circuit protection

Specifications

  • Product Name: BIQU Panda Branch Plus

  • Compatibility: P1P / P1S / X1C / X1E / A1 / A1 mini

  • Power Input: DC 5.5×2.1 (included adapter: 24V / 2.8A)

  • Built-in Gateway: Integrated MQTT gateway, supports up to 20 sub-devices.

  • Output Ports:

    • 1 × Type-C (5A)

    • 4 × Type-C (1.5A)

    • 5 × MX3.0 2-pin (2A)

    • Total: 10 independently switchable outputs

  • Web UI + BIQU APP Control: ✔

  • Protection Features: ESD Protection, Over-Current Protection, Short-Circuit Protection

  • Important Notes: Uses included 24V / 2.8A adapter.

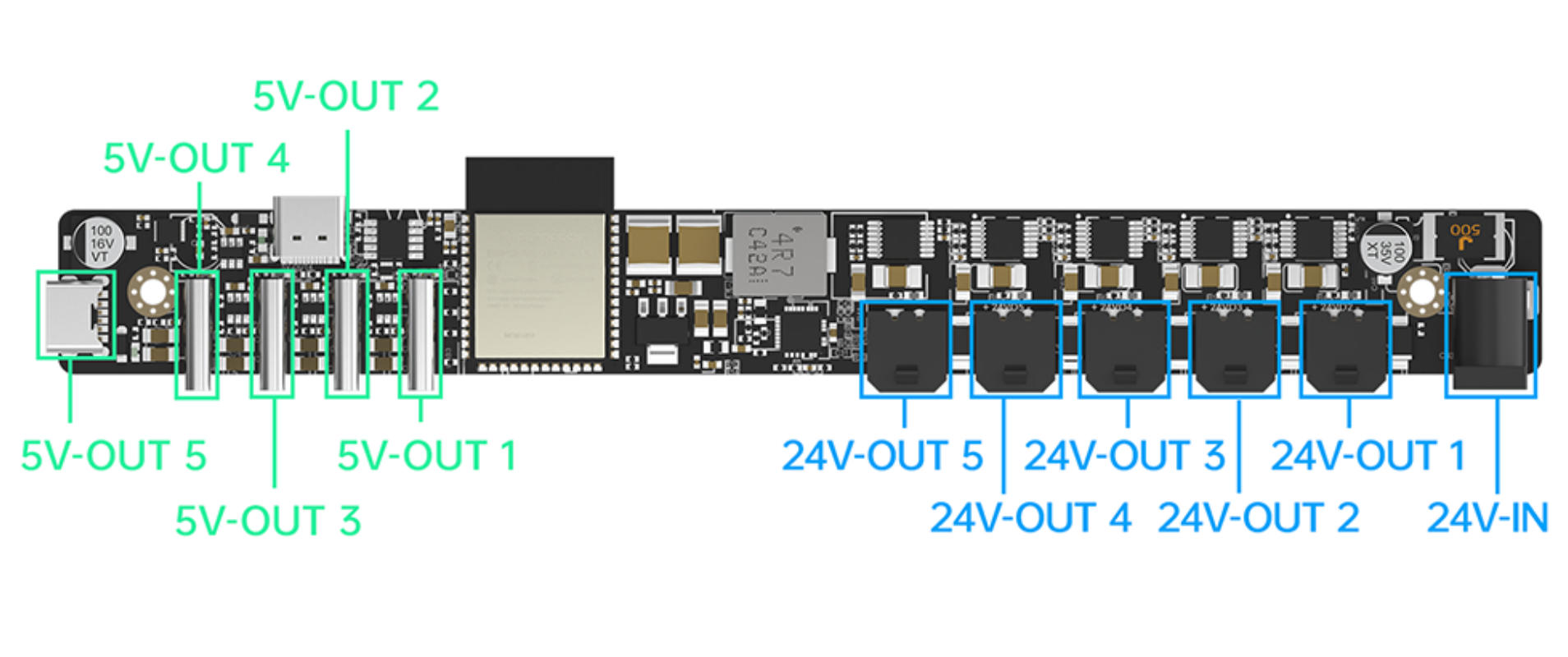

Interface

Installation Instructions

Download the required case files for your printer model from the GitHub repository, then print the case.

Installation Steps

For A1 mini Printer

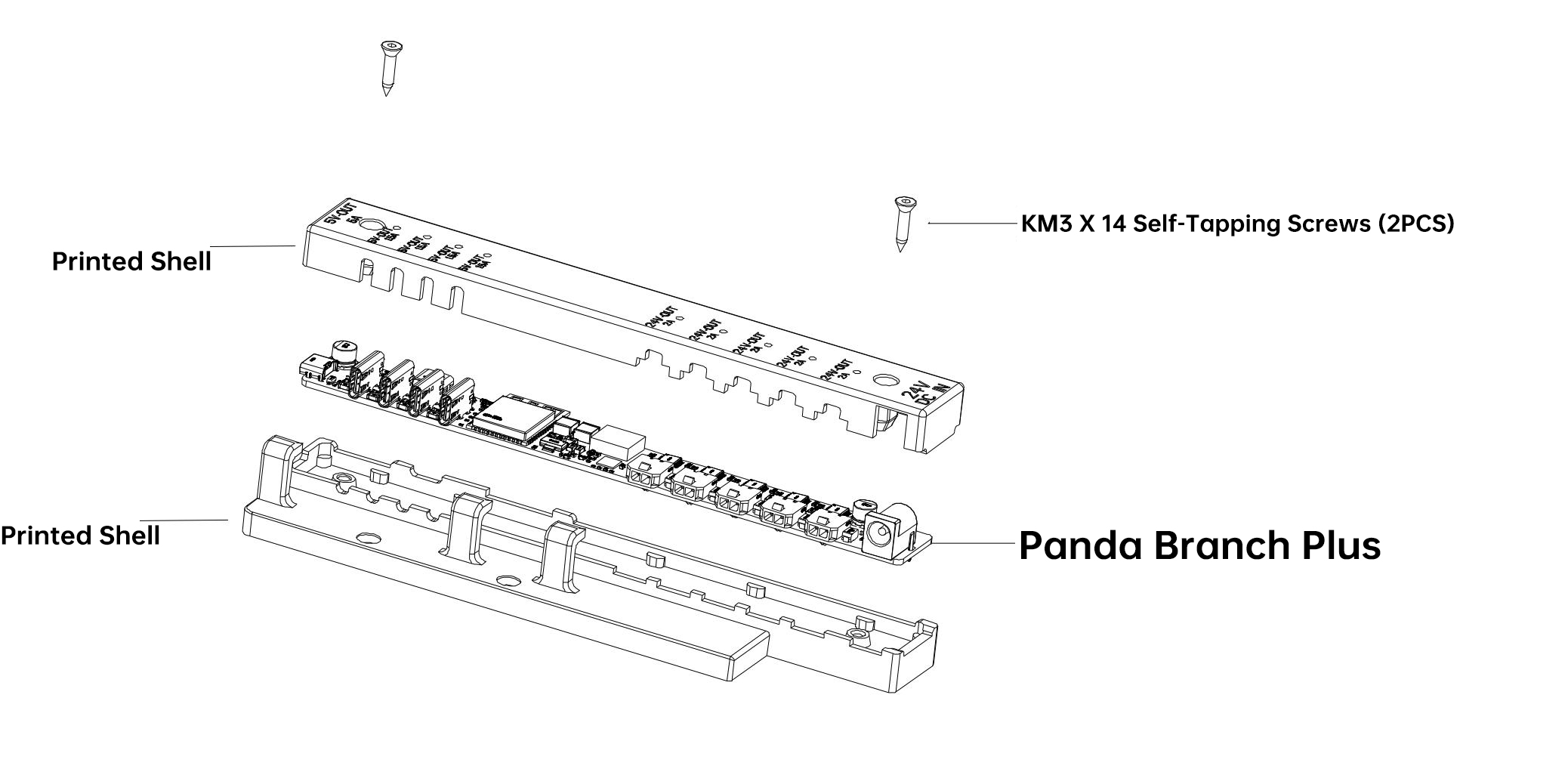

  • Place the Panda Branch Plus into the printed upper and lower shells and secure it with KM3×14 self-tapping screws.

  • Insert the printed bracket into the position shown and secure it with KM3×15 machine screws. Place the assembled case from Step 1 into the slot at the top of the printed bracket, then fasten it with the printed thumb screw.

For A1 Printer

  • Place the Panda Branch Plus into the printed upper and lower shells and secure it with KM3×14 self-tapping screws.

  • Insert the printed bracket into the position shown and secure it either with the printed thumb screw or with M3×15 machine screws.

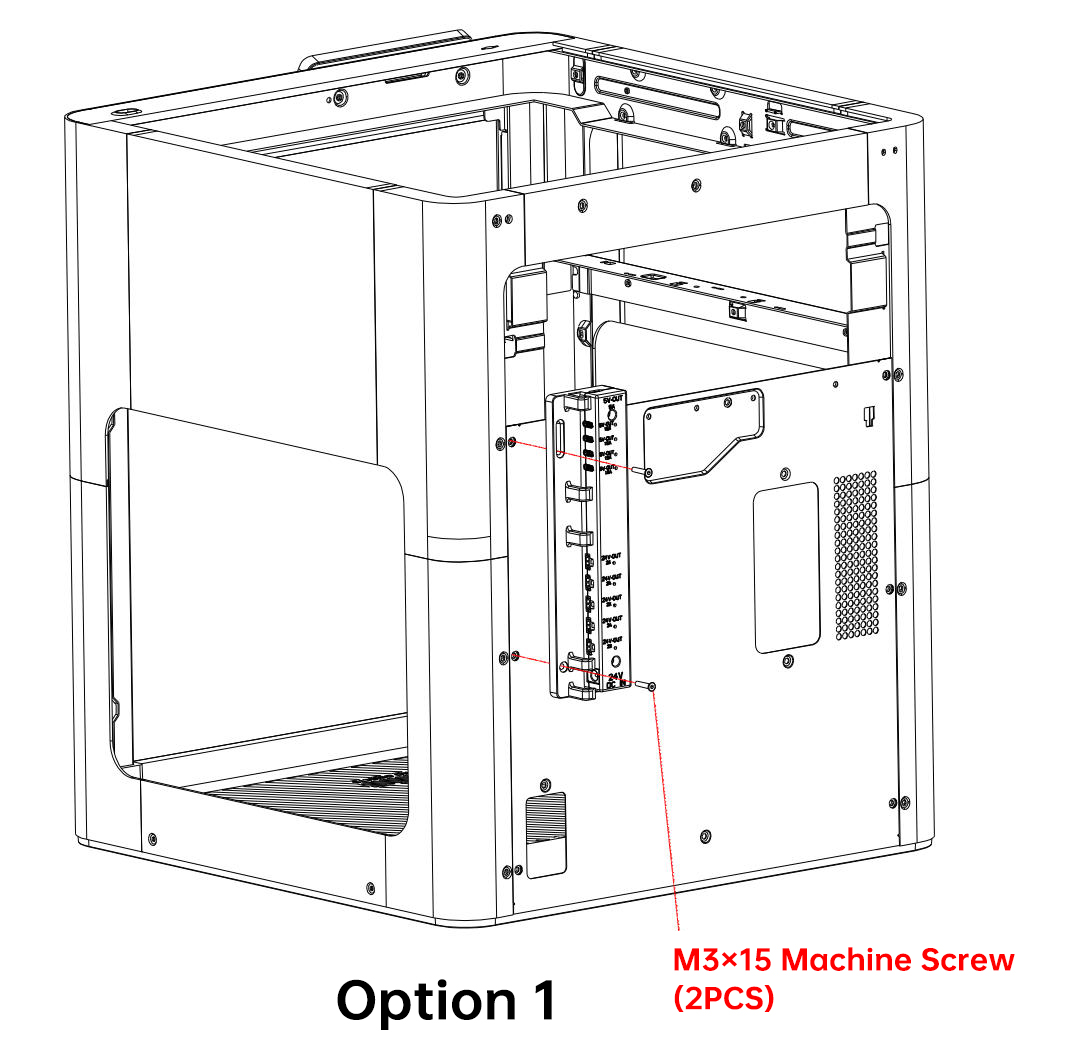

    Option 1: Attach directly to the A1 Z-axis using the printed thumb screw. Place the assembled case from Step 1 into the slot and secure it with the printed thumb screw.

    Option 2: Use two M3×15 machine screws to secure it to the A1 Z-axis

For P1 / X1 Series Printers

  • Place the Panda Branch Plus into the printed upper and lower shells and secure it with KM3×14 self-tapping screws.

  • Insert the printed bracket into the position shown and secure it with M3×15 machine screws.

Note: This method requires two M3×15 machine screws to secure the bracket to either the rear-right side or the upper-rear side of the printer.

First-Time Setup

Network Configuration

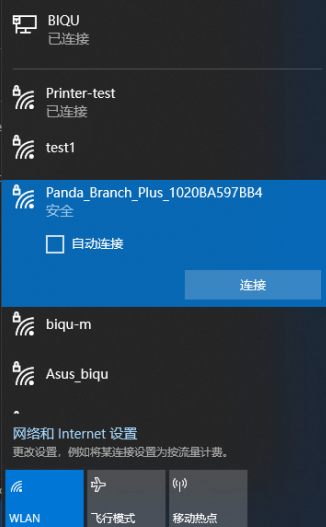

  • The device will create a hotspot named "Panda_Branch_Plus_XXXXXXXXXXXX", with the default password "987654321".

  • Connect to this hotspot using your mobile phone or computer.

  • Open a browser and enter: http://192.168.254.1/

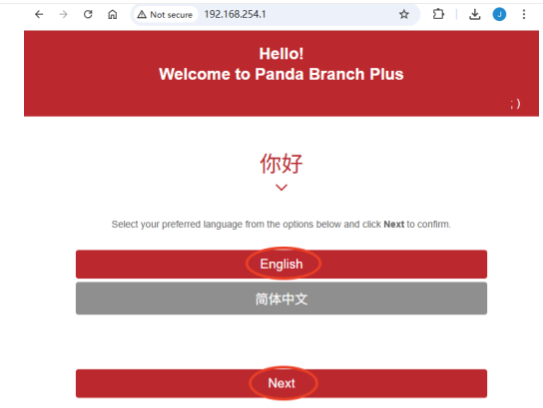

  • Select your preferred language.

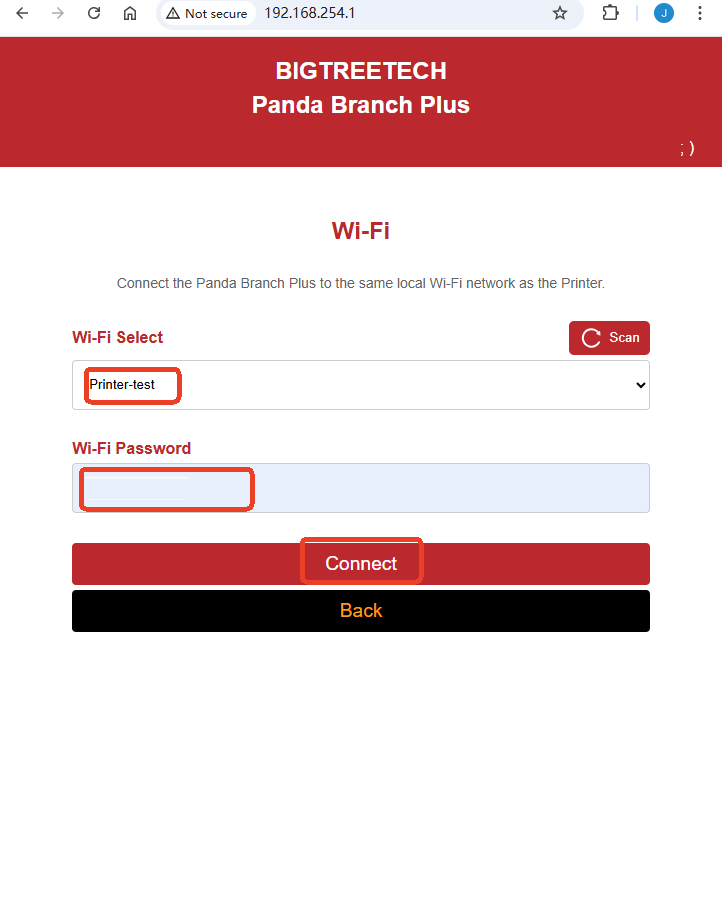

  • After scanning for Wi-Fi, choose the target network, enter its password, and click Connect.

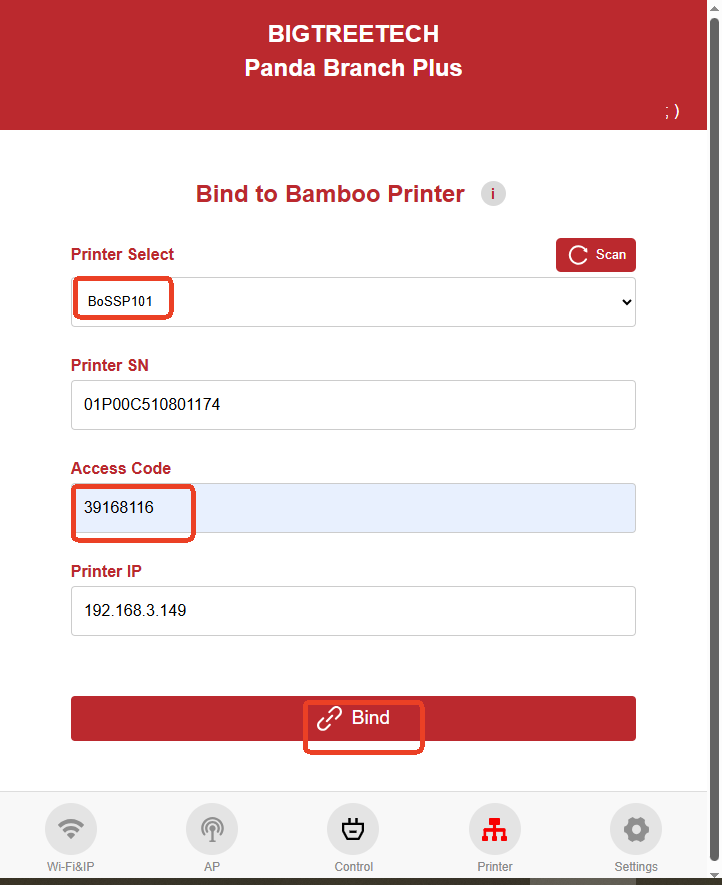

Binding the Printer

  • Click Scan Printer.

  • Enter the access code, then click Connect.

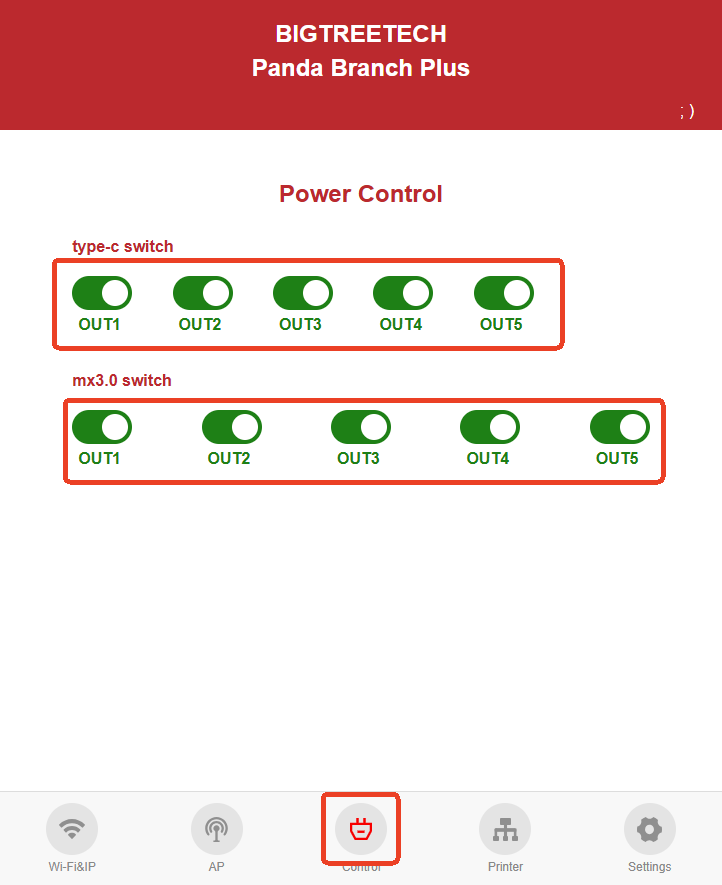

Power Control

The USB port and 24V port can be switched on or off through the Web UI.

Binding Other Panda Devices

Step 1: Bind a Printer to This Device

Once a printer is bound, the device will broadcast its information over the local network, simulating a printer named "PandaBranchPlus".

Location: xxx.xxx.xxx.xxx
USN: 41098A316C65xxx
DevConnect.bambu.com: lan
DevModel.bambu.com: C12
DevName.bambu.com: PandaBranchPlus
DevVersion.bambu.com: 01.00.00.00

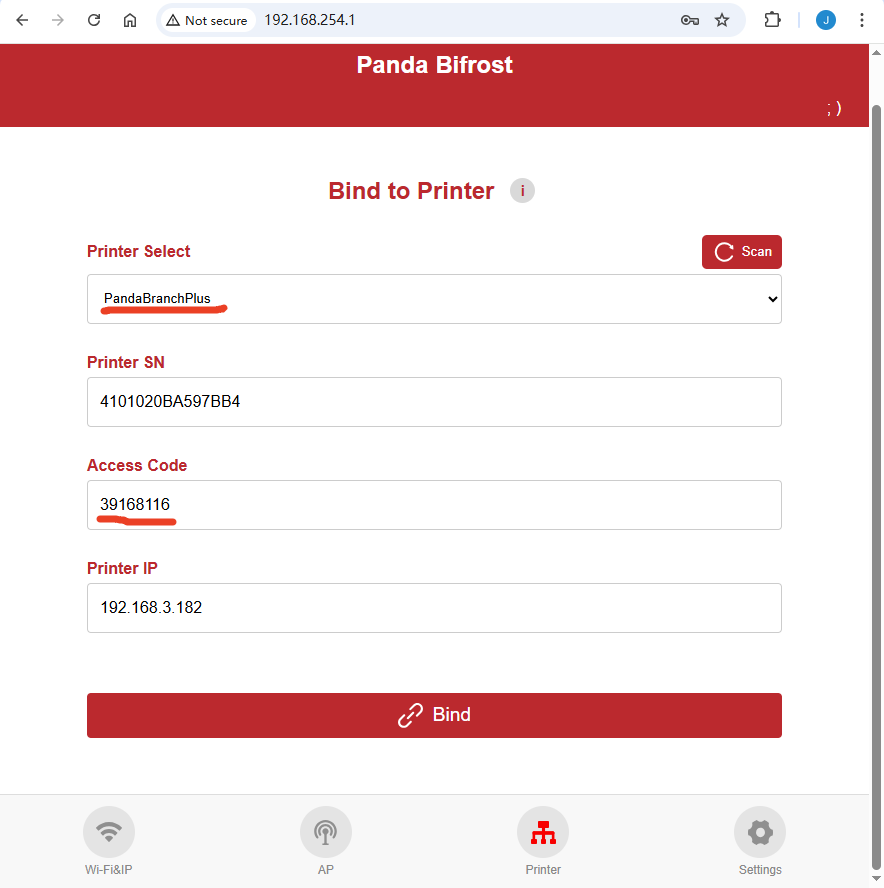

Step 2: On Another Panda Device

  • Open the Web UI, click Scan Printer, and select "PandaBranchPlus".

  • Enter the access code shown on the printer, The access code is same as the one on the printer.

  • Click Bind.

Usage Limitations

When Connecting with PandaTouch

  • Cloud mode is not supported.

  • Viewing SD card files from the printer is not supported.

  • Starting print tasks from a USB drive is not supported.

Maximum Number of Clients

  • Supports up to 20 devices.

Firmware

Firmware History

01.00.00.00

  • Initial release.

Feature Requests

We welcome your suggestions for future firmware enhancements. Please submit your feature requests on the official Panda Branch Plus GitHub repository.

Request Features

Technical Support

Was this page helpful? If you have any questions about product usage or encounter issues, please contact our after-sales team at service001@biqu3d.com.
