Panda Under Armor H2D

Product Overview

The BIQU Panda Under Armor H2D is specifically designed for the H2D 3D printer, offering full bottom protection during moving. It features castor wheels for easy movement and stable positioning, making it adaptable to various usage scenarios while ensuring complete protection and convenience for your device.

Product Features

  • Full Protection: Offers complete protection for the bottom components of the printer, preventing damage from accidental bumps during movement.

  • Custom Fit: Custom fit for the H2D printer, providing a seamless fit that effectively blocks dust and debris.

  • Equipped with Liftable Castor Wheels: : Enables smooth mobility and secure parking, adapting to diverse workspace requirements with ease.

Product Specifications

  • Product Name: BIQU Panda Under Armor H2D

  • Material: Powder Coated Steel

  • Compatible Model: H2D 3D Printer

Installation Guide

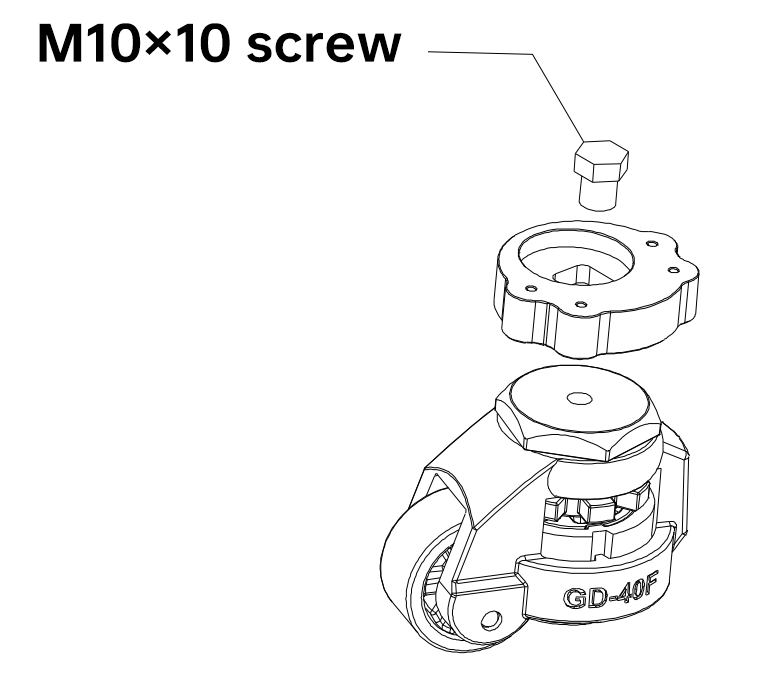

  • Step 1: Install the Wheel Assembly

    As shown in the image, secure the mounting bracket to the castor wheel using M10×10 screws.

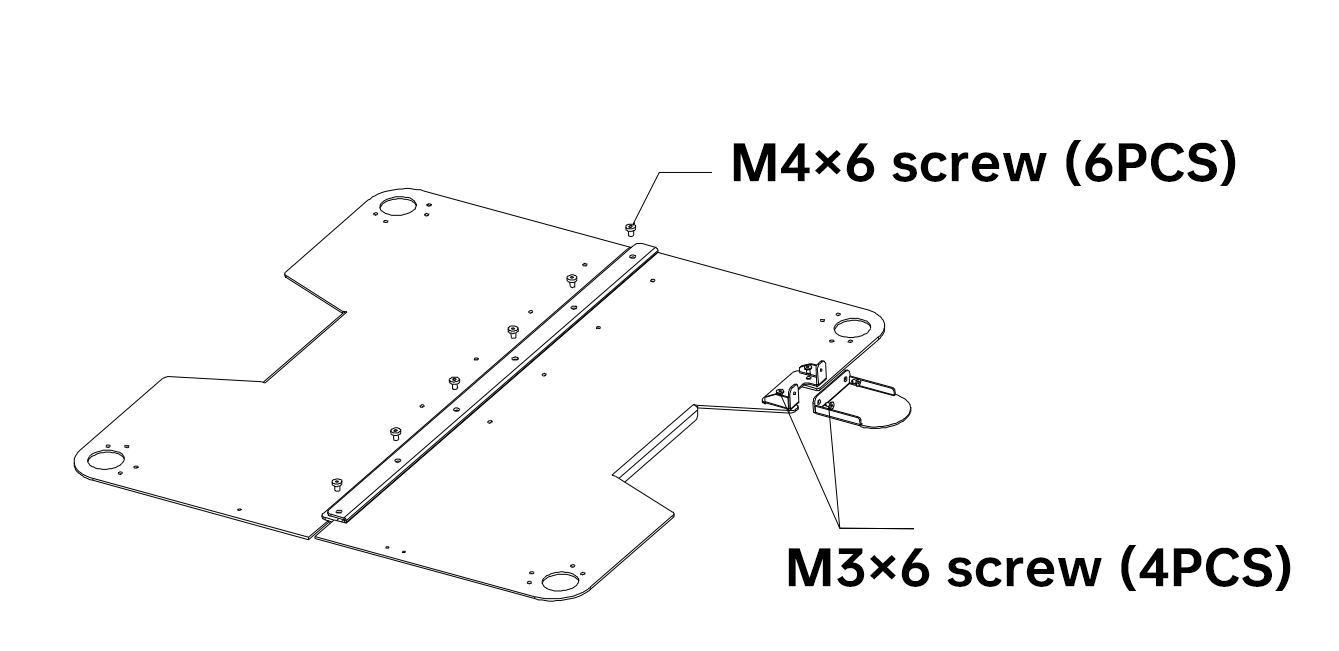

  • Step 2: Assemble the Main Panel

    ⚠️ Important: During normal use, the silkscreened side must face the floor.

    • With the silkscreened side facing up, join the two metal panels and secure them with 6 × M4×6 screws.

    • Use 4 × M3×6 screws to attach the emergency stop switch bracket to the plate.

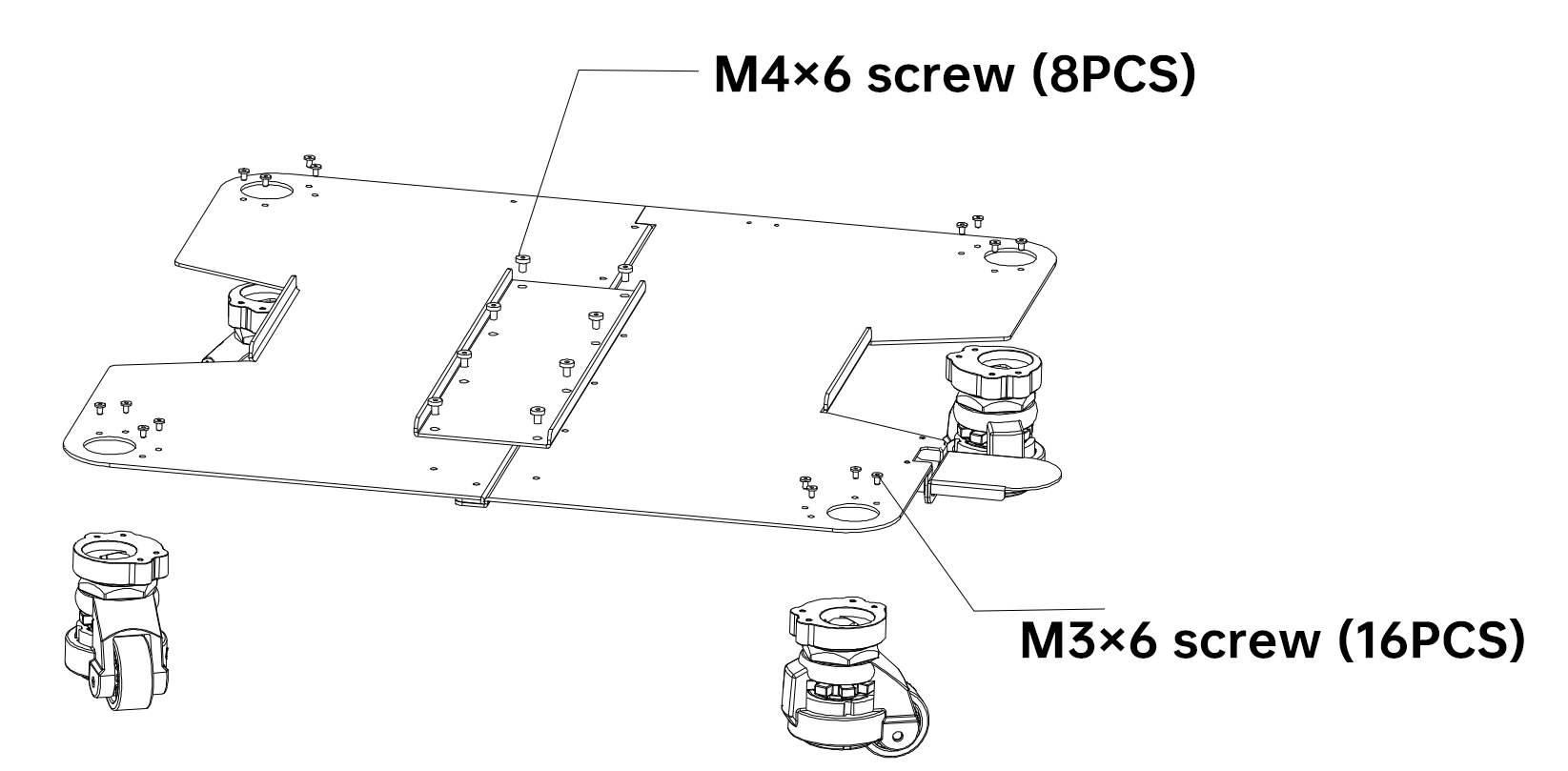

  • Step 3: Reinforce Connection Stability

    • Flip the Panda Under Armor H2D onto its load-bearing side (the side without silkscreened) and use 8 × M4×6 screws to secure the reinforcement plate across the two panels, enhancing stability.

    • Finally, use 4 × M3×16 screws at each corner to fully install the wheels. With the help of a partner, align the printer with the Panda Under Armor H2D and place the printer onto it.

How to Lower the Shock-Absorbing Foot Pads for Stable Placement

If you need the printer to stay stable and immovable, you can lower the shock-absorbing foot pads within the castor wheels.

  • Step 1: Visit the Panda Castor Wheel Adjustment Tool to download and print the Panda Castor Wheel Adjustment Tool.

  • Step 2: Use the Panda Castor Wheel Adjustment Tool to pull the red adjustment wheel forward or backward to easily raise or lower the foot pads, allowing the printer to either stay securely on the desktop or floor, or move smoothly when needed.
